Screwed Flanged Immersion Heater

Description

If you’re open to some innovative thinking, we propose considering a Screwed Flanged* Immersion Heater as a cost-effective alternative to an excessively expensive Flanged Heater. Contact Jamie at 07897 246 779 to explore this option.

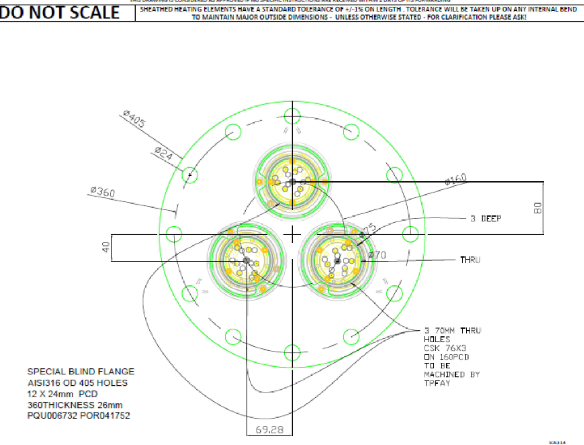

The fundamental idea involves taking a flange and, instead of fitting it with elements as seen in our FFY Range, either tapping it with a 2.25″BSP thread or cutting a 70mm hole in it and welding a 2.25″BSP boss to it. It’s somewhat like –

Screwed Flanged Immersion Heater flange Foto
Screwed Flanged Immersion Heater flange Foto



This allows you to either opt for a readily available (next-day delivery) or customized (two-week delivery) screwed immersion heater and easily incorporate it to heat your solution. The enduring benefit of this solution is that you can continue to employ it in the future. Given that a screwed heater costs between £230-450, compared to our least expensive flanged 12kW (FFY1216) priced at £1055, the potential for substantial savings becomes evident.

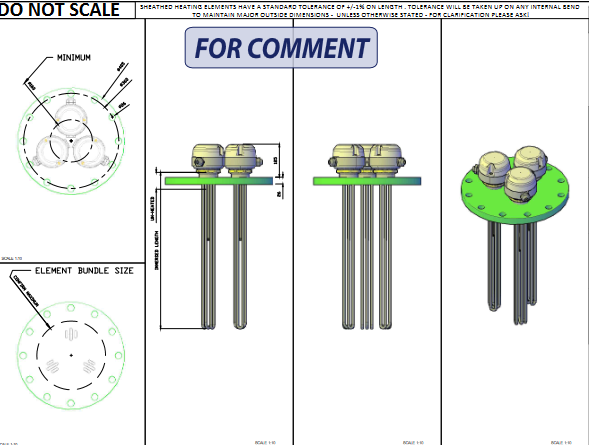

For larger flanges necessitating higher power, we can affix multiple weld bosses onto the flange. This enables the installation of more heaters within the available space. For instance, fitting three stock 18-inch units at £350 each would result in a 54kW system (if these were stock 18’s at 33″). Alternatively, three 24-inch units at £420 each could accommodate a 72kW system (if these were 24’s at 43″).

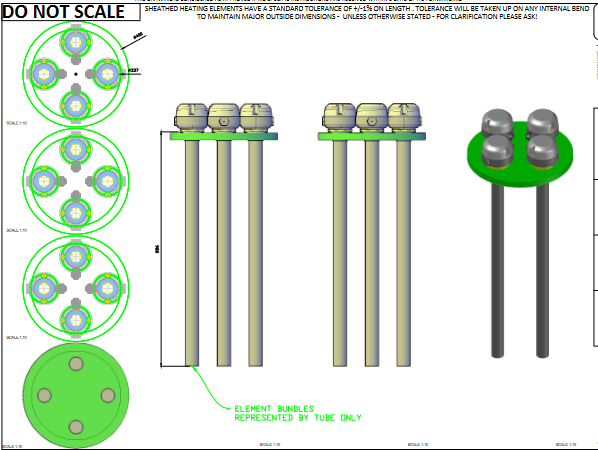

…or possibly even 4 (for example, with stock 18-inch units at 33″ and priced at £350 each, it would yield a 72kW unit. Alternatively, using 4 x 24-inch units at 43″, each priced at £420, it could support a 96kW capacity) –

Screwed Flanged Immersion Heater – What is feasible will be dictated by the flange dimensions.

Flange table
Flange table



Additional images will be incorporated as we continue to sell this innovative variation. We sincerely hope that the concept gains popularity. It proves to be a significant win-win for both customers and suppliers.

Feel free to reach out to Jamie at 07897 246 779 to discuss your specific requirements. The initial customers who choose this approach will benefit from favorable prices. We look forward to receiving photos. We will take some before they leave our facility. Ideally we would like some in their operational environment, showcasing their effective performance on-site. Your glowing reviews are also highly appreciated.

Useful Background Screwed Flanged Immersion Heater Information

An Immersion Heater…

Immersion Heater

…is usually 3 Heating Elements, (usually Incoloy 800 sheathed (“A Superior Stainless Steel“))…

U Bent 30′′ 750mm Heating Element UK

…sometimes U bent as in Element image, sometimes looped, as in Immersion Heater image, to fit more element into available space, thus lowering the watt density & extending it’s working life. Usually on a screwplug, usually Brass 2.25″BSP.  Usually with a terminal box, hopefully IP 67 . Commonly to screw into a vessel, usually Stainless Steel, generally through the side, via a weld boss, welded to the tank.

If you now realise what you are actually after is a Heating Element, please click HERE to visit, view and buy from our sister site, HeatingElements.co.uk.  Or you can stay on IHUK and view our element selection HERE.

If you are interested in a Screwed Immersion Heater, please select from –

Further Useful Stuff.

3 x U bent element Immersion Heaters UK
3 x U bent element Immersion Heaters UK

On this site, you will not only find an online catalogue of our core range of products. You’ll find tips, advice and guidance, as well as links to other resources to make your life easier, including our heating calculators.



On our blog, ElementsOfHeating there is a wealth of relevant and useful information, such as an explanation of what a heating element actually is. Also we have a full description and explanation of the component parts of a screwed immersion heater and my best punt at explaining the joys of watt density, and it’s crucial importance when choosing the most appropriate immersion heater for wateroil, and breweries. Also available is an informational entry about the process we go through when designing immersion heaters generally.

YouTube Channel.

On our YouTube channel we have videos showing how to wire an immersion heater



…an explanation of what a heating element is

..as well as this 2 minute explanation of what an immersion heater is.



*Patent Pending (NOT!) until we (or you) devise a more fitting name. We appreciate your diligence in checking!
